Dresser

Building this in the advanced class for school

Play
PlayPause

Zack Rosier avatar
Video made by Zack Published on 09/19/2018, viewed by 2623 , 1 Comments

My teacher is allowing me to do a different type of wood then most students so I am excited to see how it turns out!

What you will need

maple

walnut

pocket screws

glue

clamps

draw slides

draw knobs/pulls

router w/ bit

screws

nail gun w/ nails

miter saw

painters tape

How to do this project

1

Play

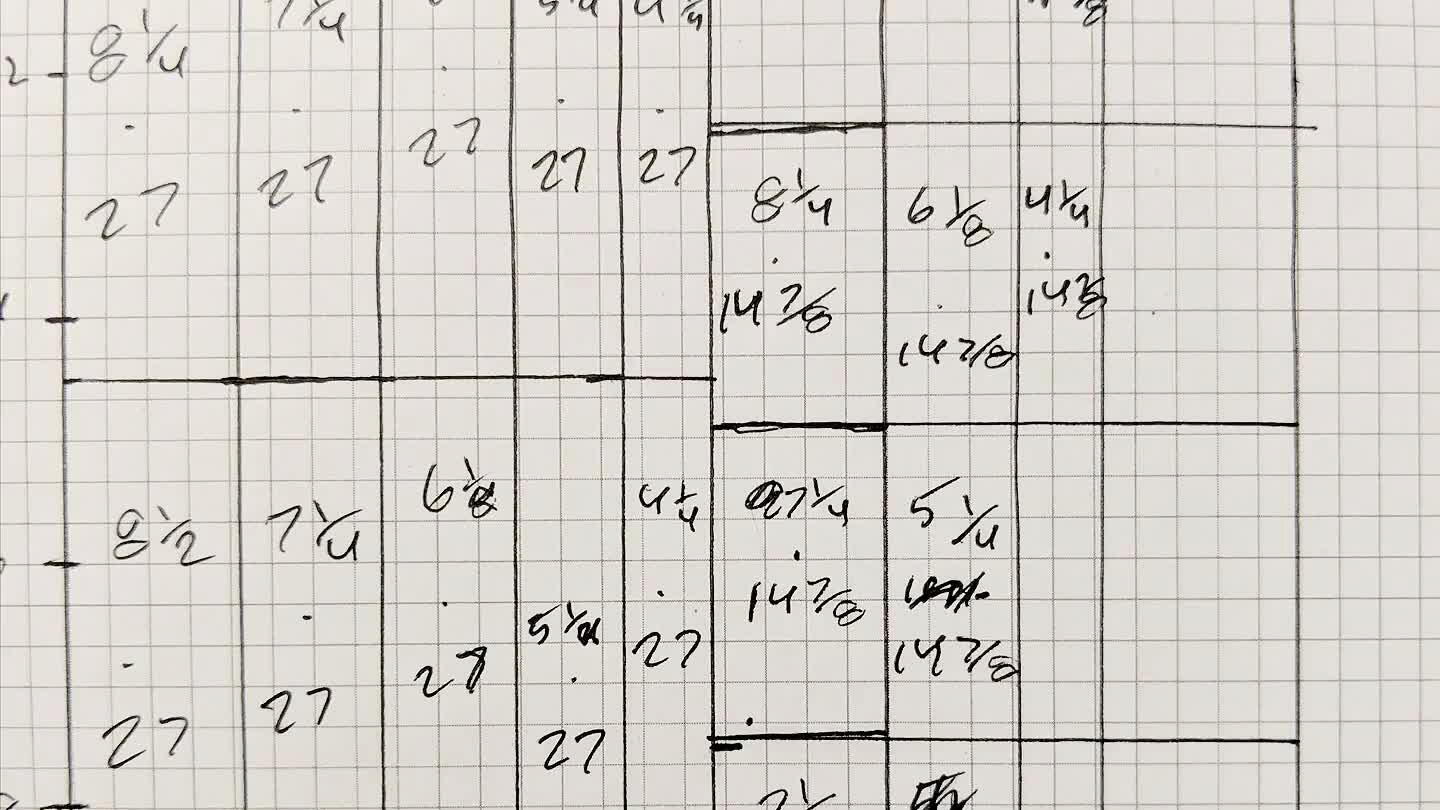

My teacher assigned me to make a cut list for our class

2

Play
ut it together

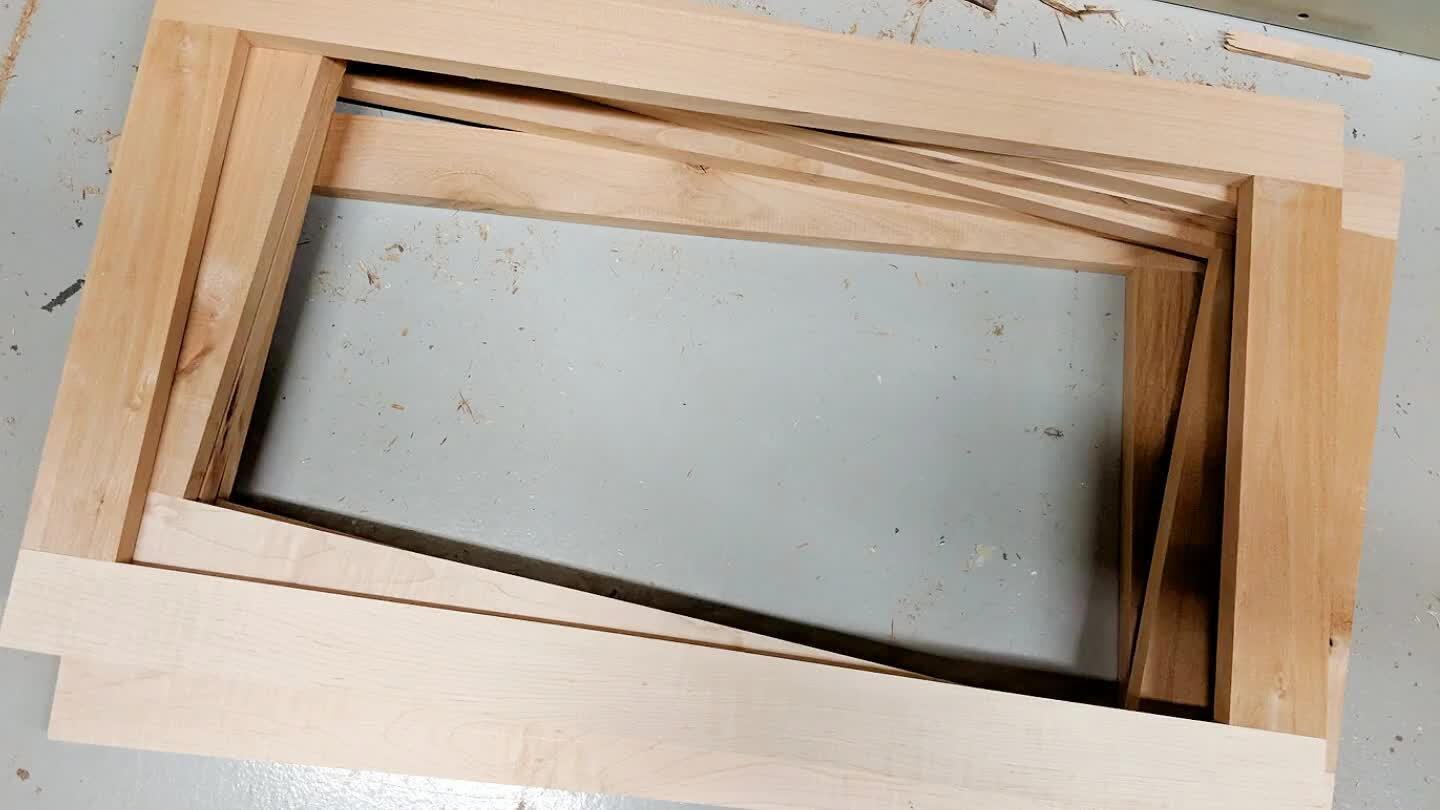

Cut all the web frames to the right size and then I used pocket screws to put it together

3

Play

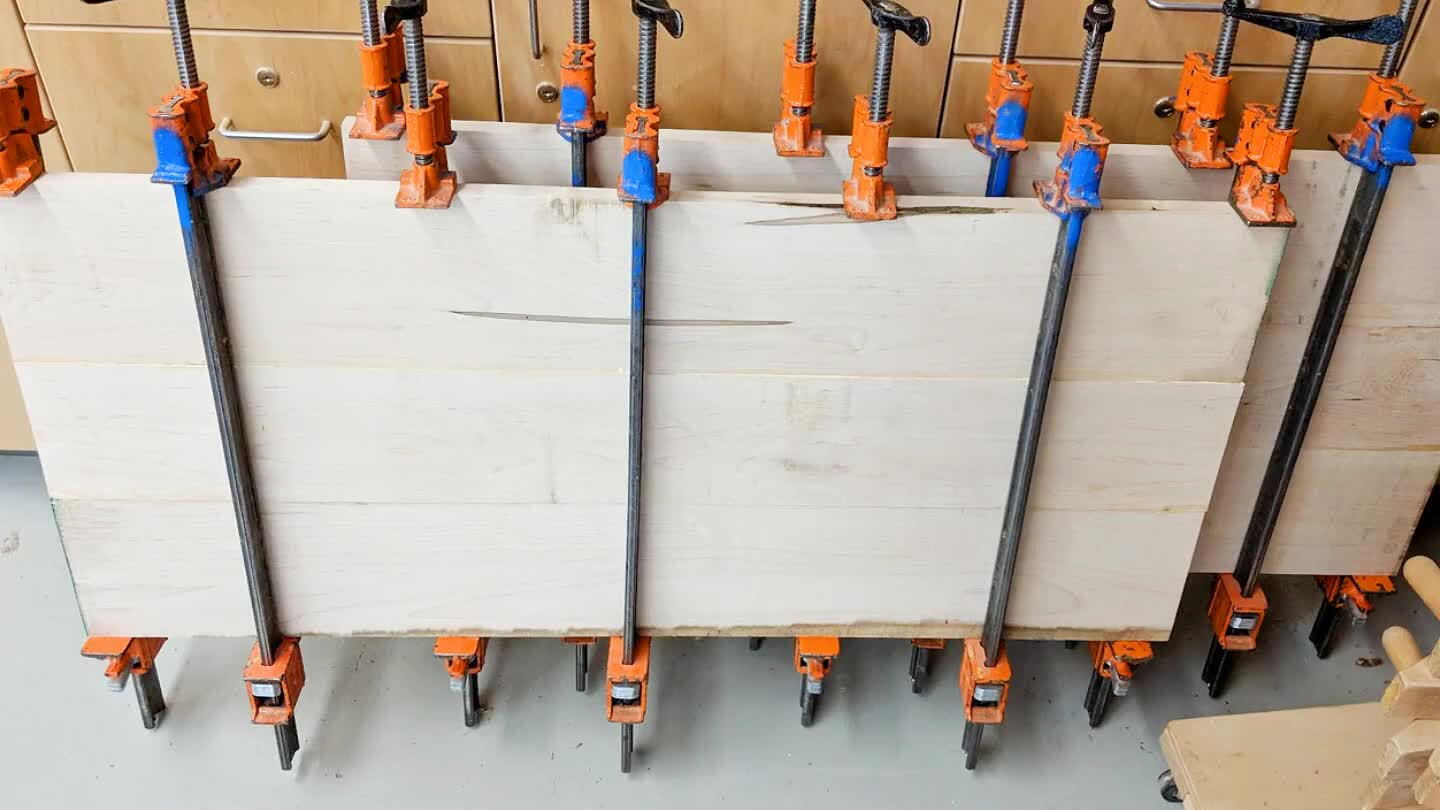

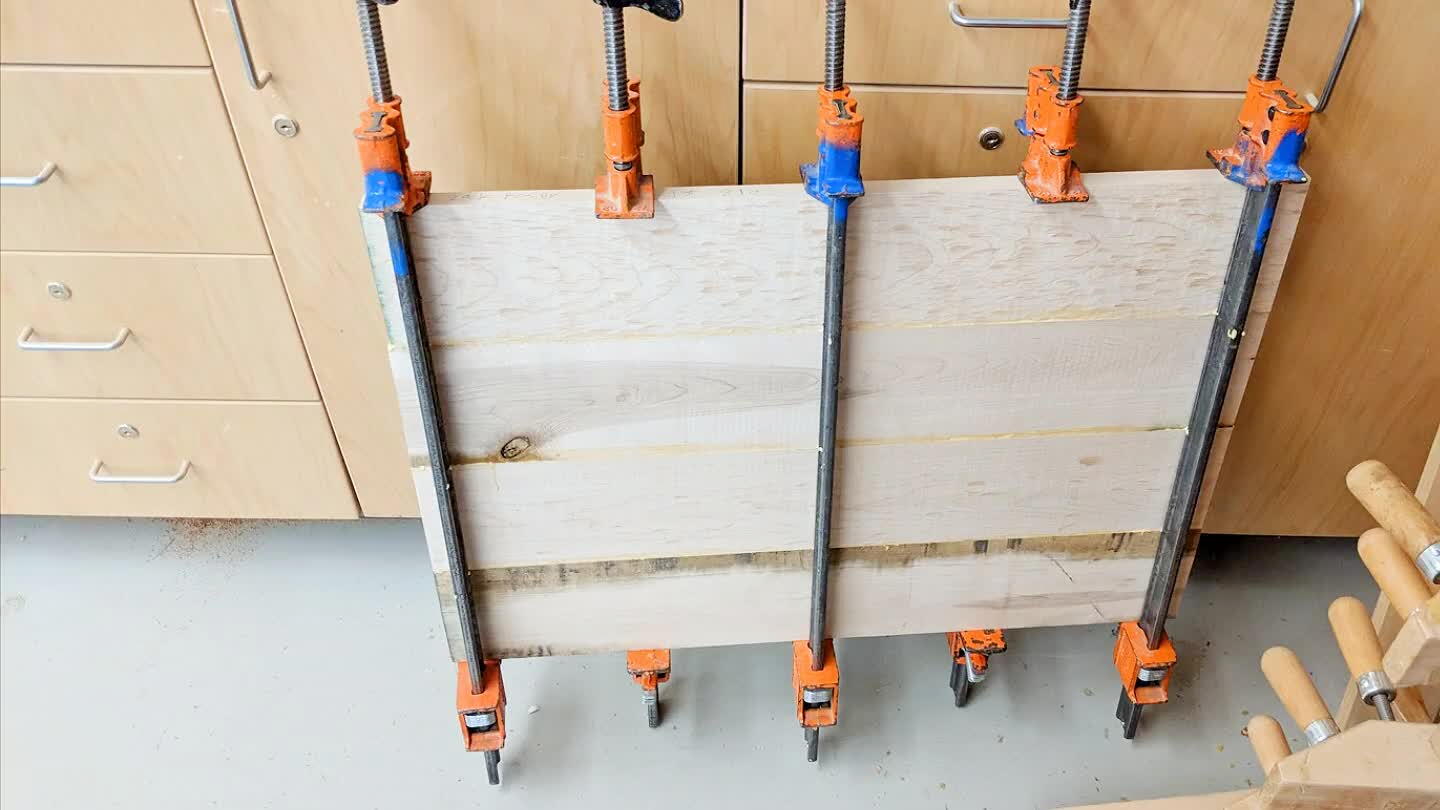

Got the maple and cut it to a rough length and then glued it up

4

Play

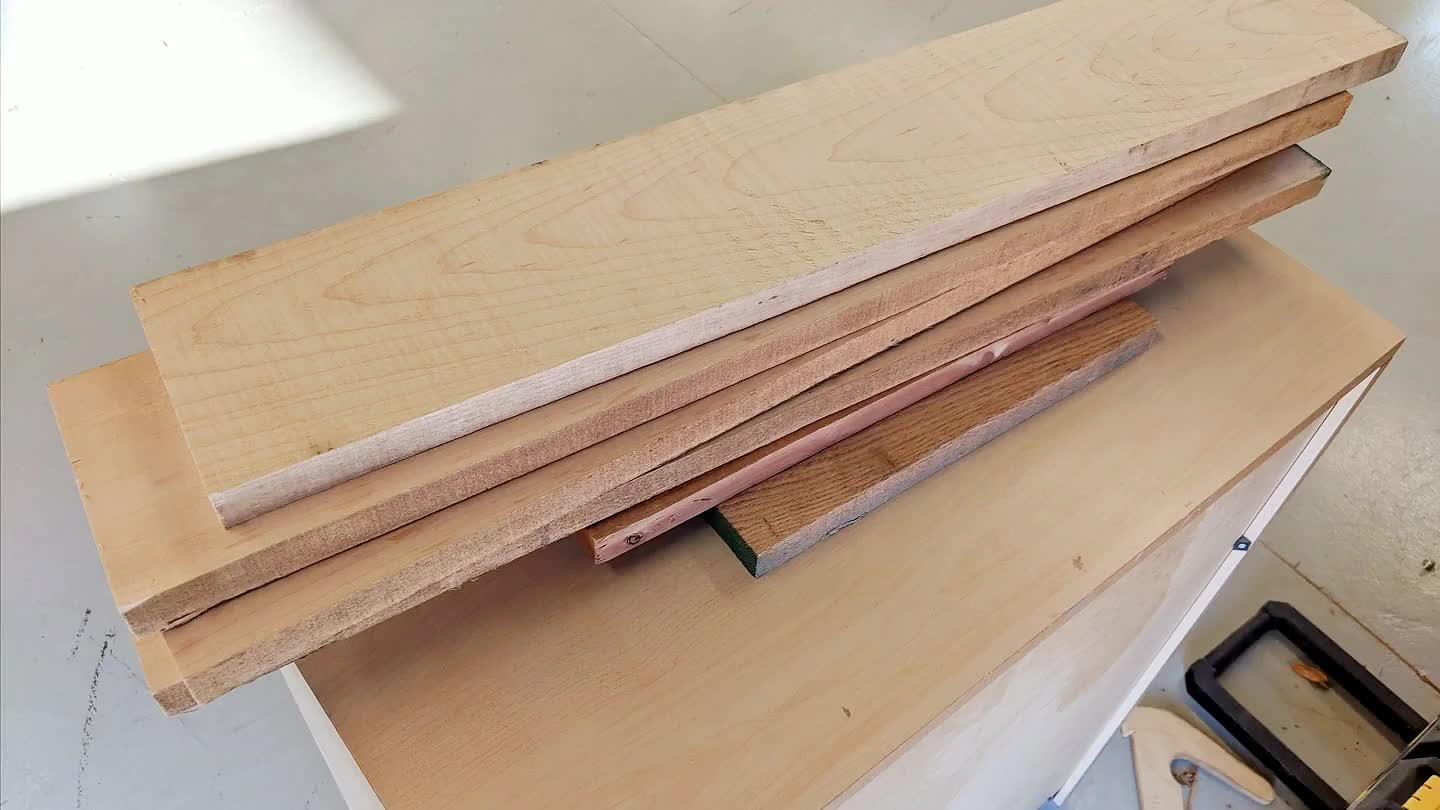

Got maple for the top of the dresser and then cut it to the rough length.

5

Play

This step I just got glue clamps and then glued it all together

6

Play
e front web frames I used a dado blade on the table saw.

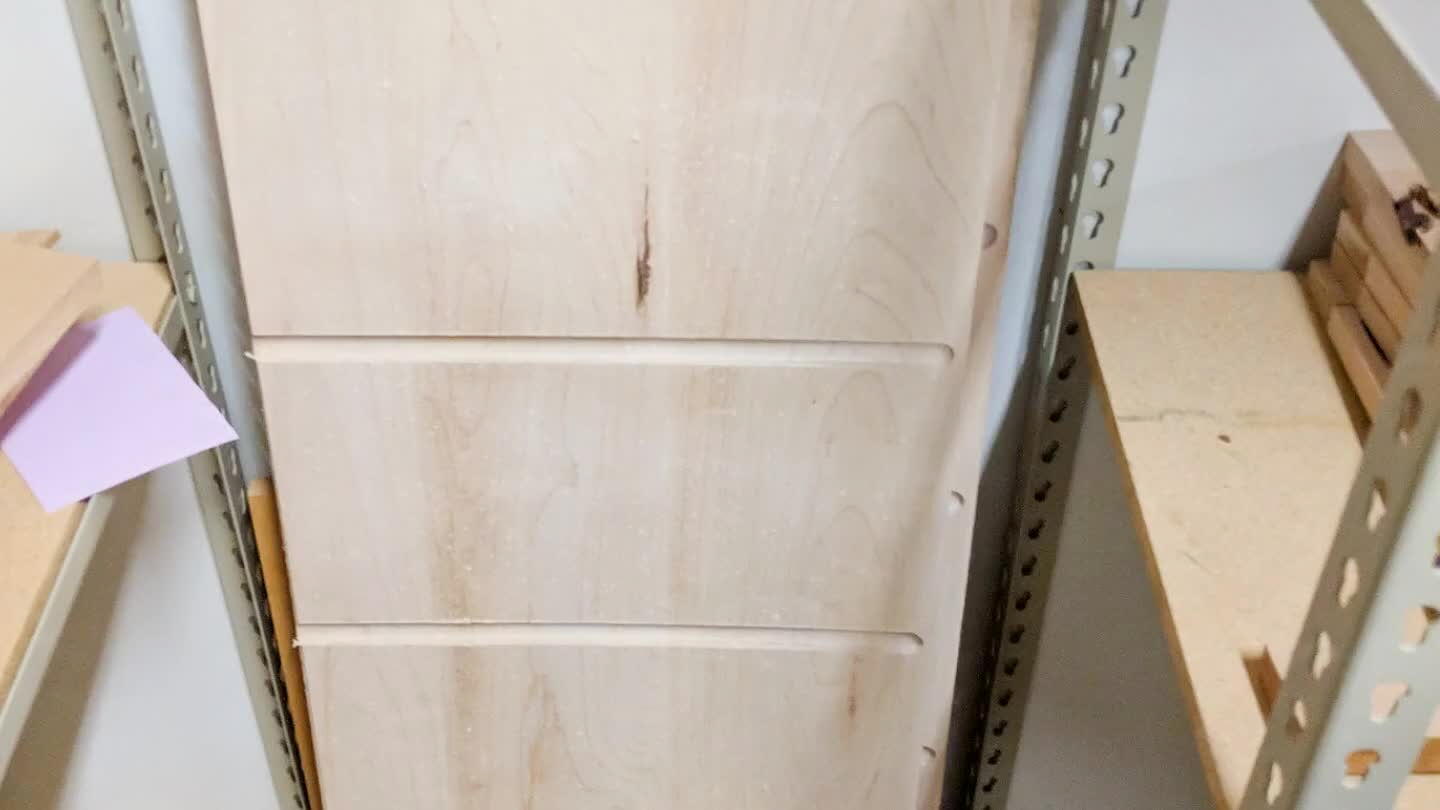

We used the cnc machine to cut the stop dados on the side panels but for the front web frames I used a dado blade on the table saw.

7

Play
that when I glue it everything will fit correctly.

Wanted to make sure everything fit correct so I did a dry fit to make sure that when I glue it everything will fit correctly.

8

Play

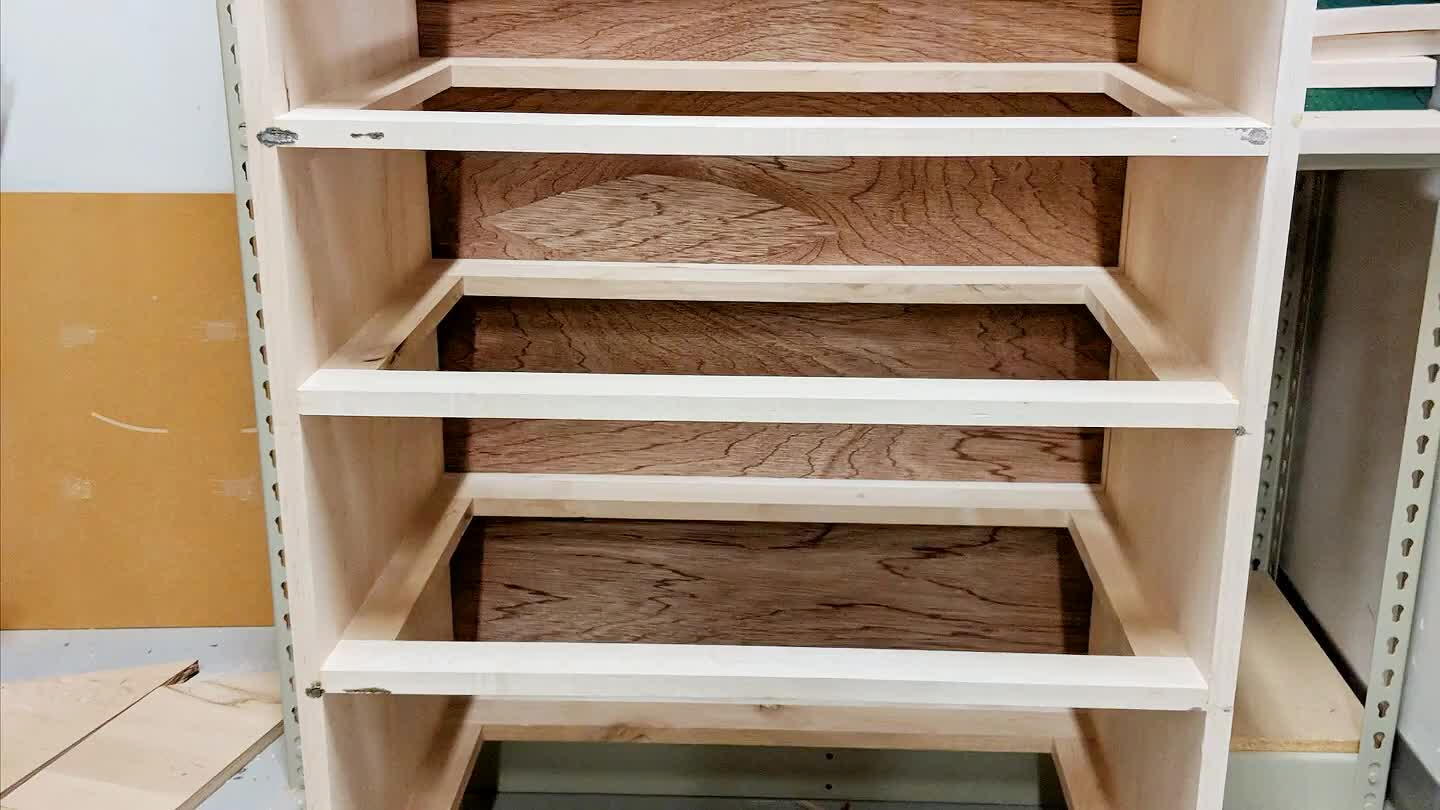

Glue everything together and use clamps to square it up

9

Play

Use staple gun to attach the back panel

10

Play

Cut and glue up the drawer fronts to fit with 1/16th inch on every side

11

Play
t then I used a router table to cut all the dados.

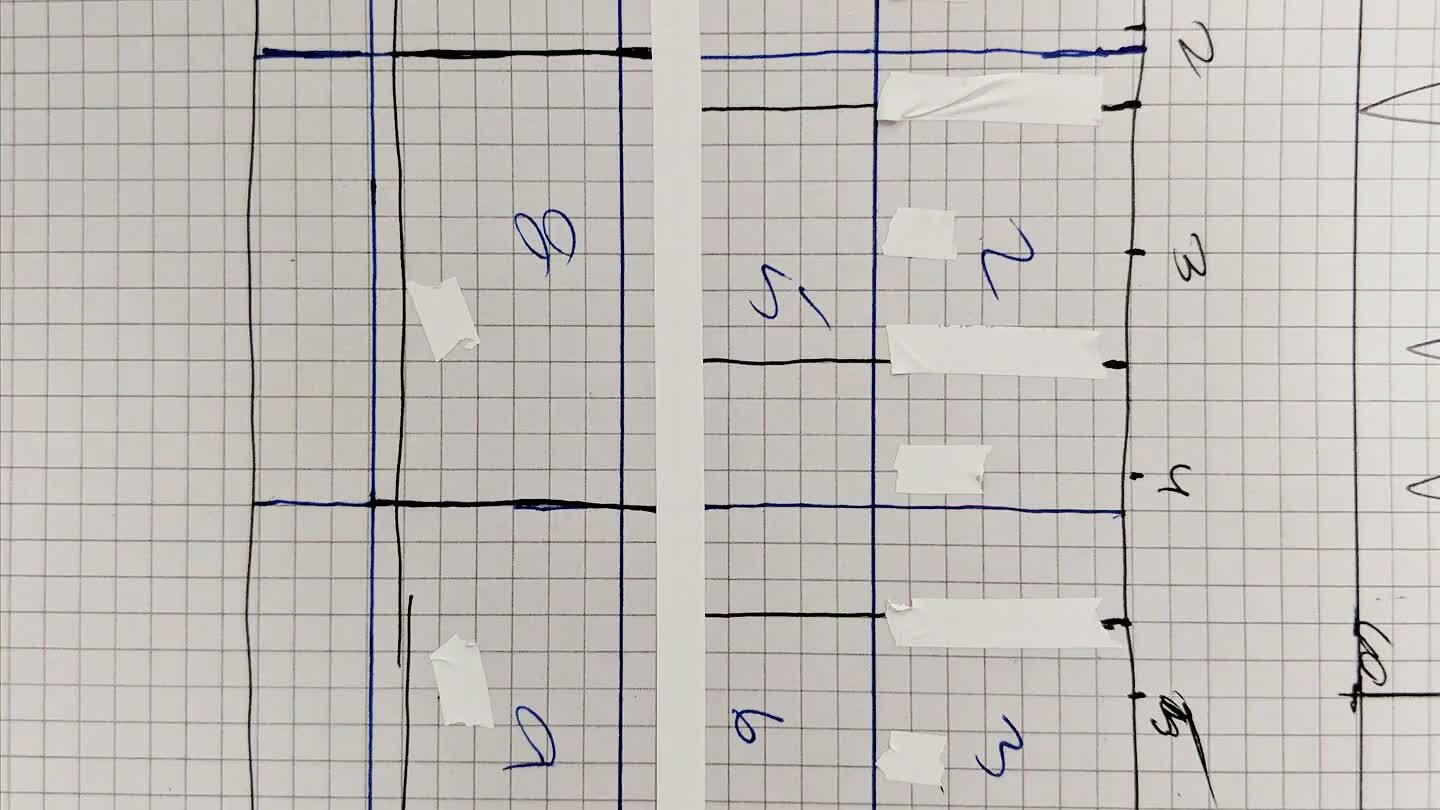

Make a sheet so I can see how to best cut out all the drawers with one sheet then I used a router table to cut all the dados.

12

Play
d the bottom drawer and used long mitered peices to strengthen the bottom

I cut the drawer bottoms out of a quarter inch peice of MDF then I assembled the bottom drawer and used long mitered peices to strengthen the bottom

13

Play
ck corners for the slide to sit on. Then I attached the clips with 1/2" screws and drilled a 1/4" hole for the little hooks in the back of the slides.

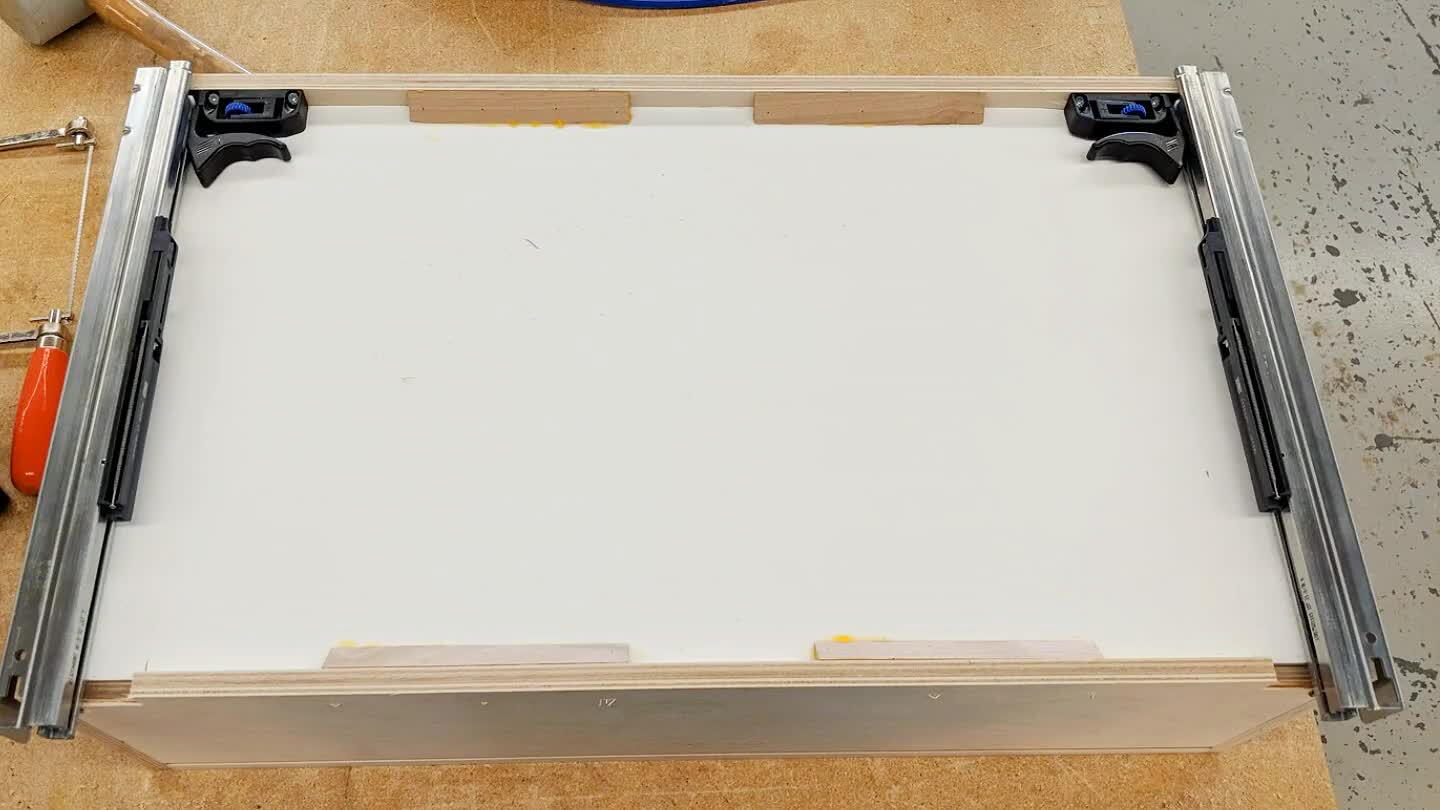

I had to cut a little rectangle out of the bottom of each drawer in both back corners for the slide to sit on. Then I attached the clips with 1/2" screws and drilled a 1/4" hole for the little hooks in the back of the slides.

14

Play
ake sure they had a 1/16 inch gap on all sides I used a penny on the bottom and two sides. Then I used some screws and wood glue to make sure that they won't pull apart.

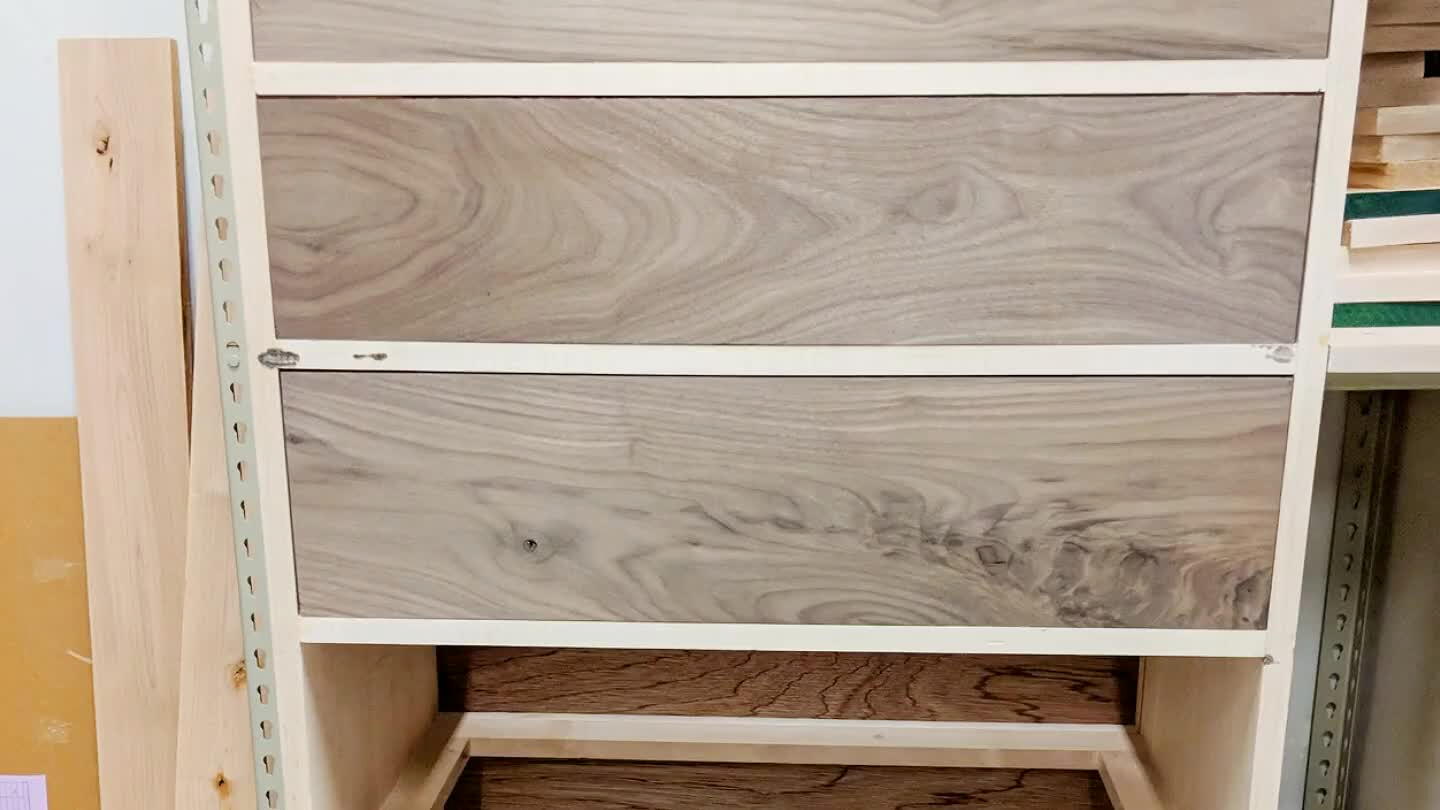

Use the walnut peices I already cut out for the fronts of each drawer. To make sure they had a 1/16 inch gap on all sides I used a penny on the bottom and two sides. Then I used some screws and wood glue to make sure that they won't pull apart.

15

Play
s had even spaces on all 4 sides and that they were flush which took longer then expected.

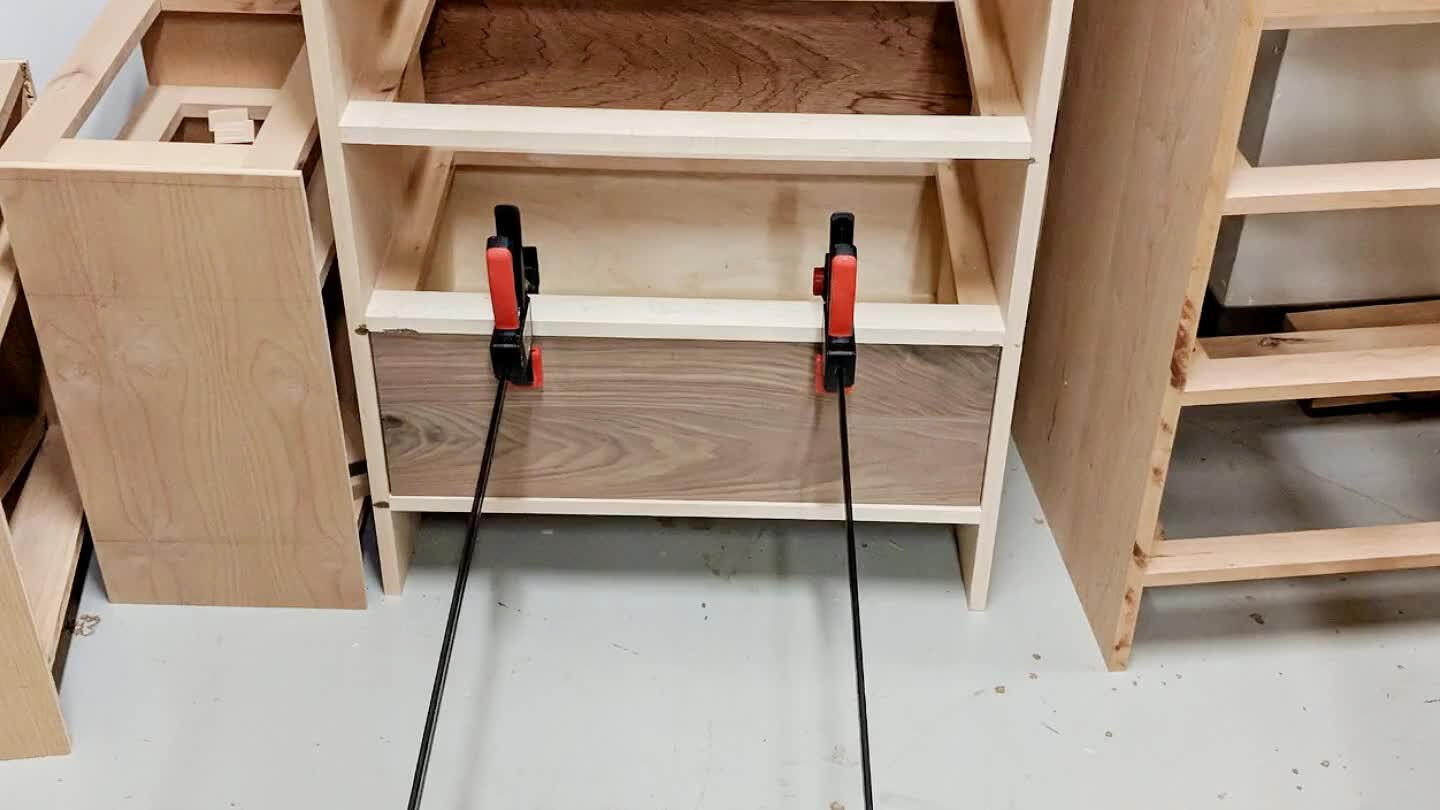

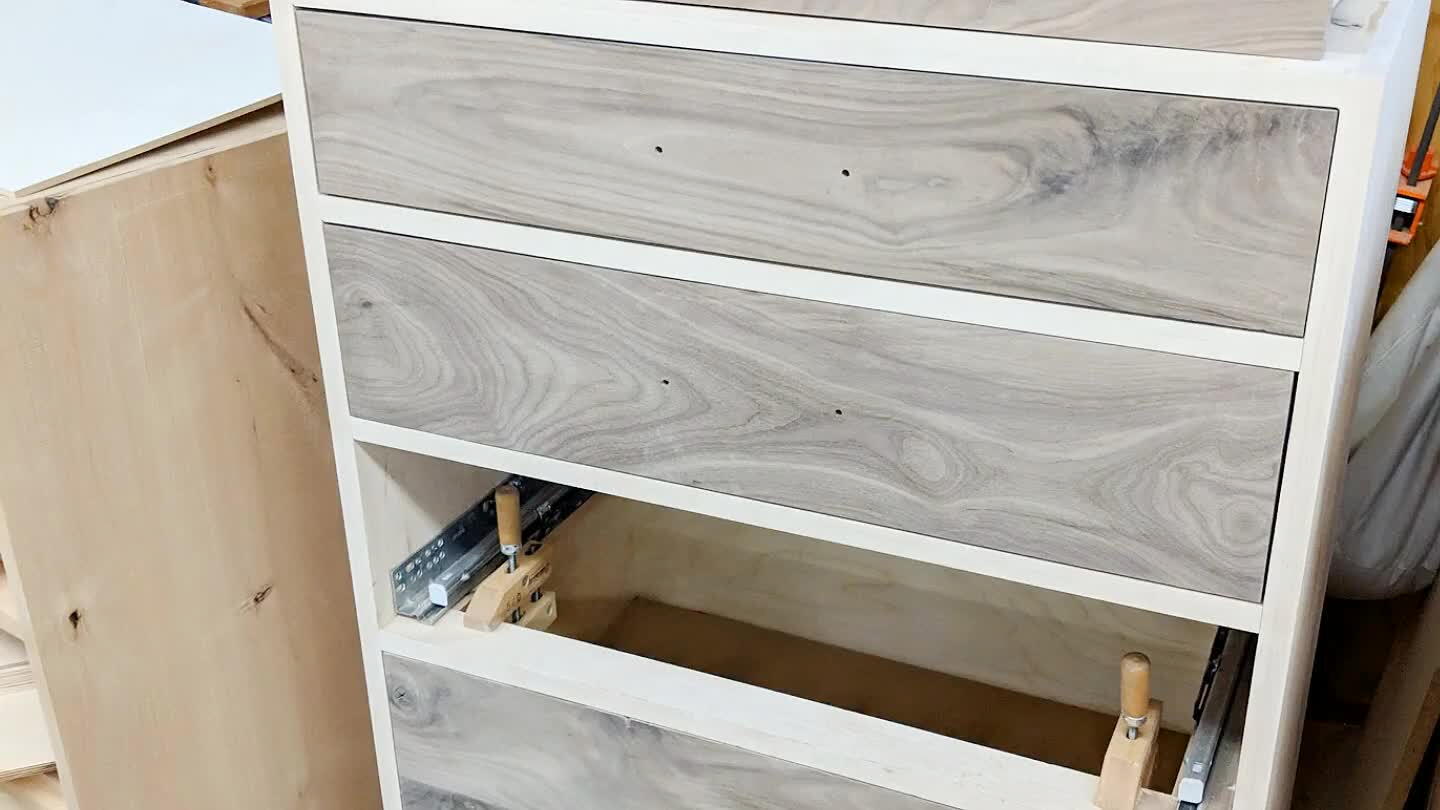

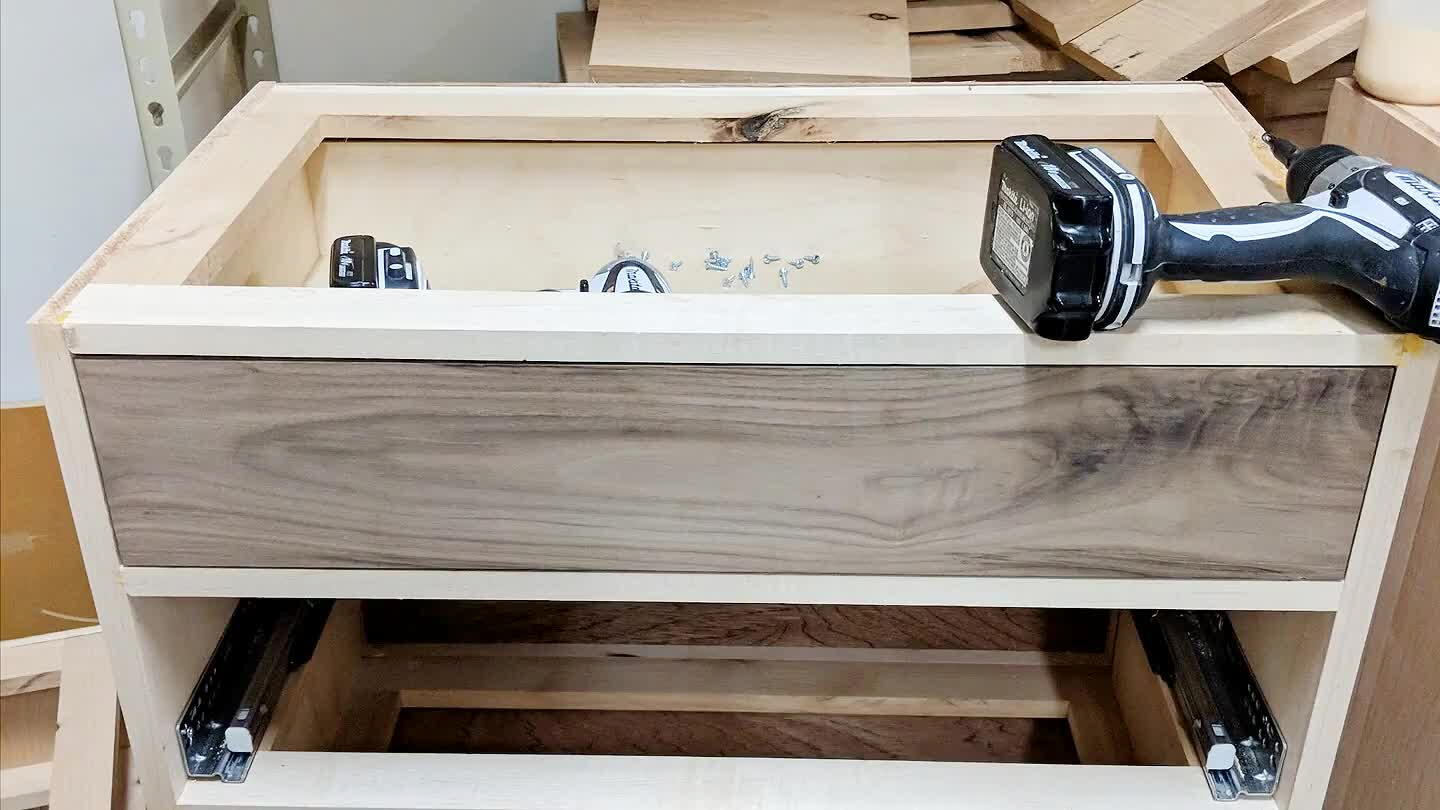

Had to attach each drawer slide to the dresser and make sure that the fronts had even spaces on all 4 sides and that they were flush which took longer then expected.

16

Play
 middle one so then I cut some wood to the rough length and then cut it to width and used the router bit on the top edge.

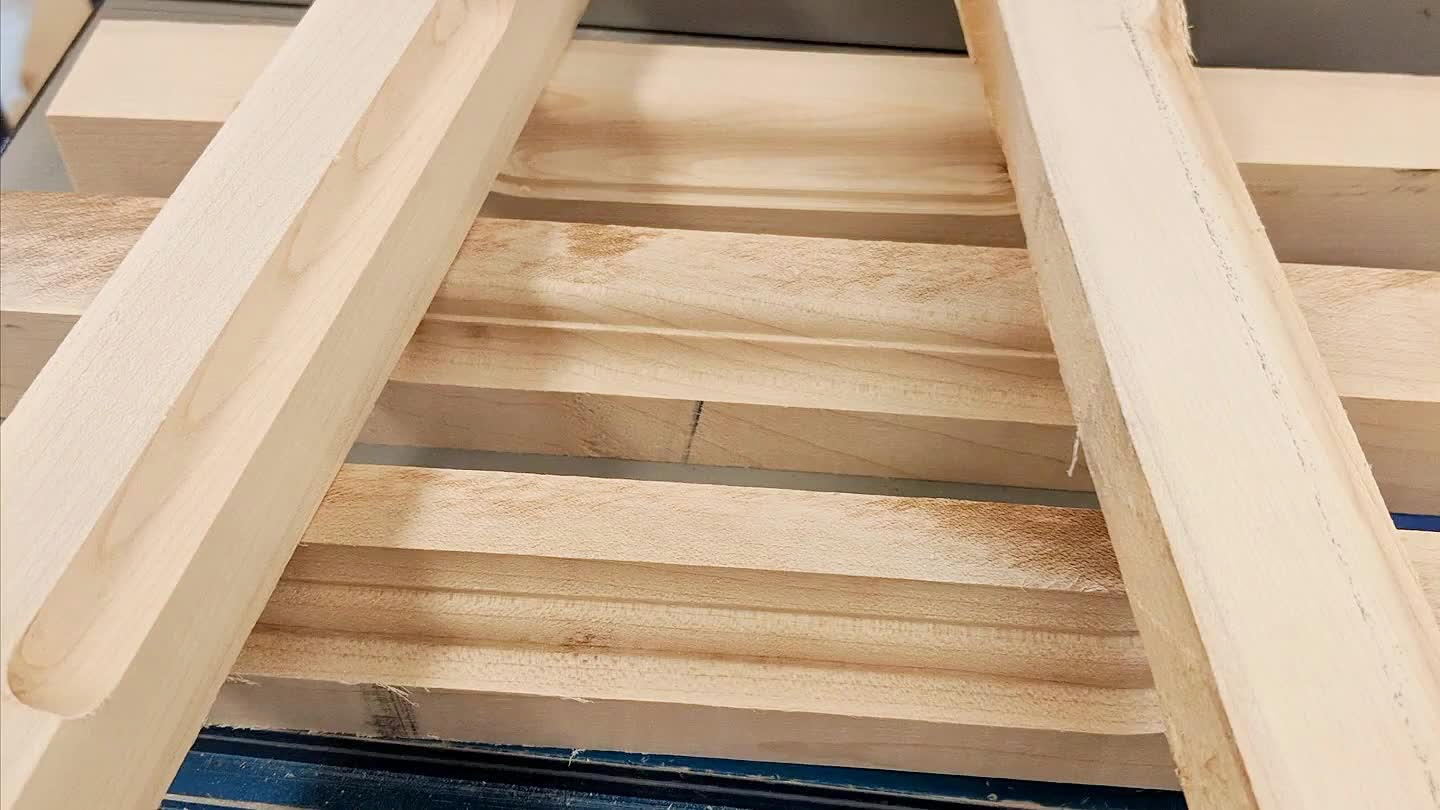

I used scrap peices of wood to test out some router bits and decided on the middle one so then I cut some wood to the rough length and then cut it to width and used the router bit on the top edge.

17

Play
ep it in place

Use glue and very small nails to put the mouldings on and some clamps to keep it in place

18

Play
 90 degrees from the rest so that it will help prevent it from warping or twisting.

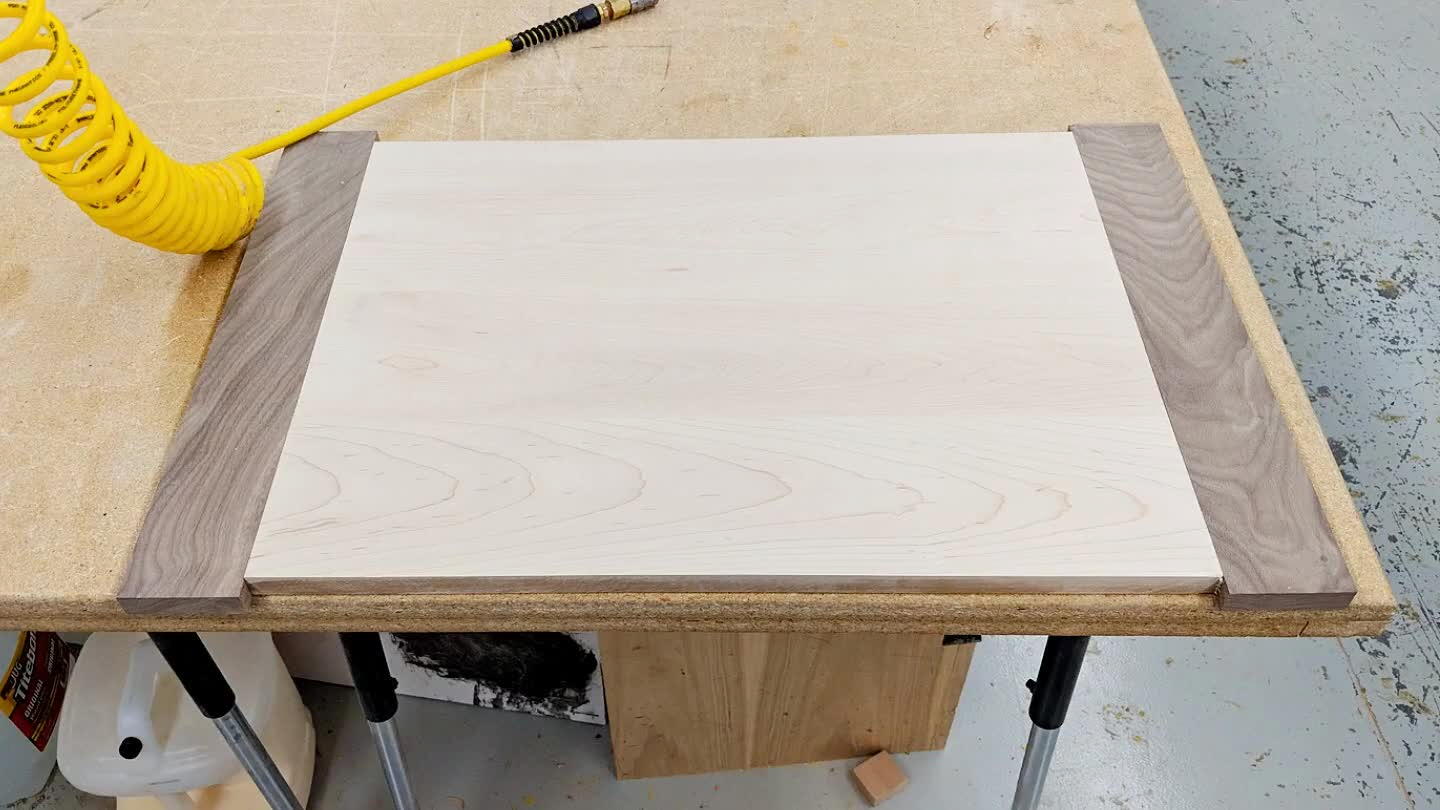

I cut 3 inch strips of walnut to contrast the maple and I also put it going 90 degrees from the rest so that it will help prevent it from warping or twisting.

19

Play
onto each drawer

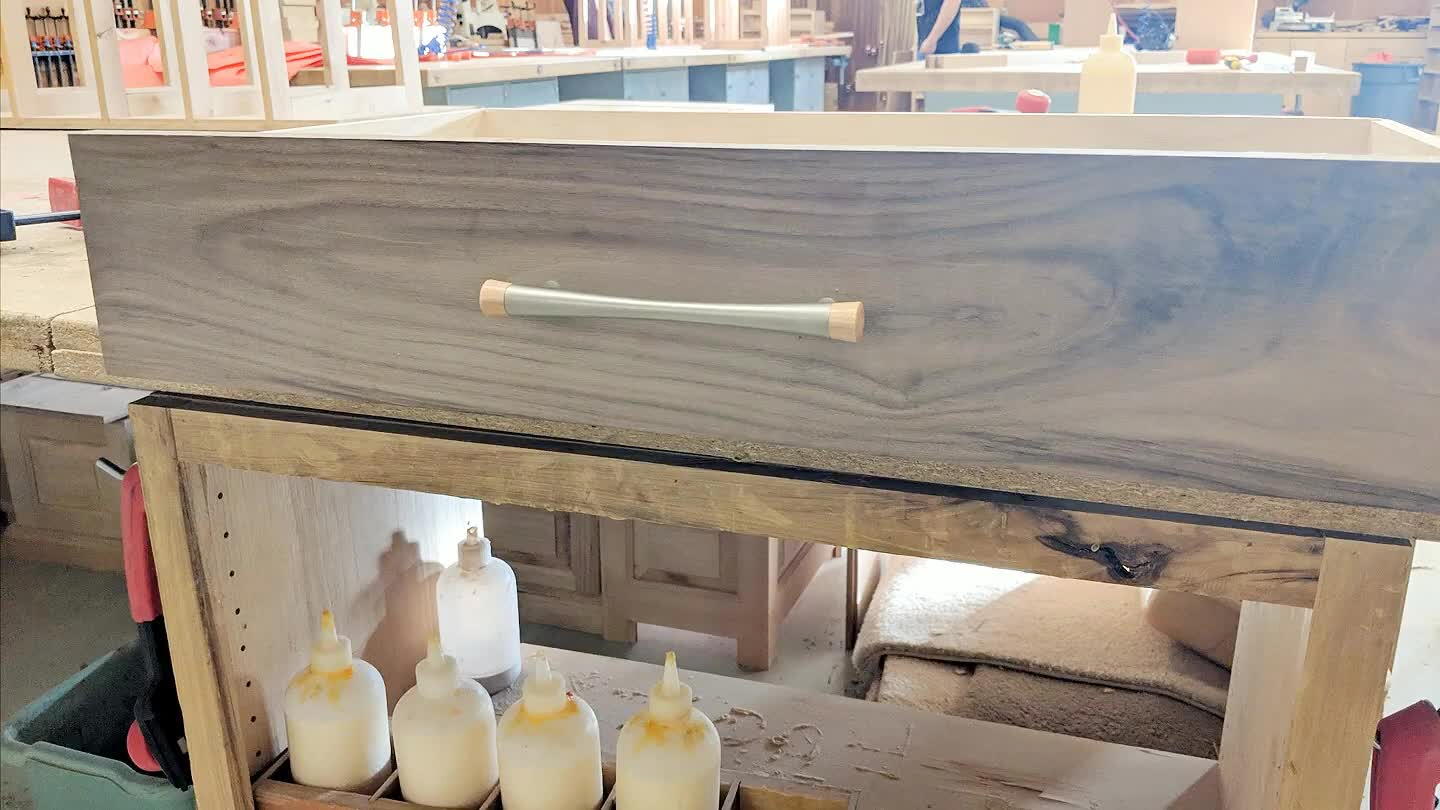

I made a template so that I could easily drill and hook the drawer handles onto each drawer

20

Play
ect.

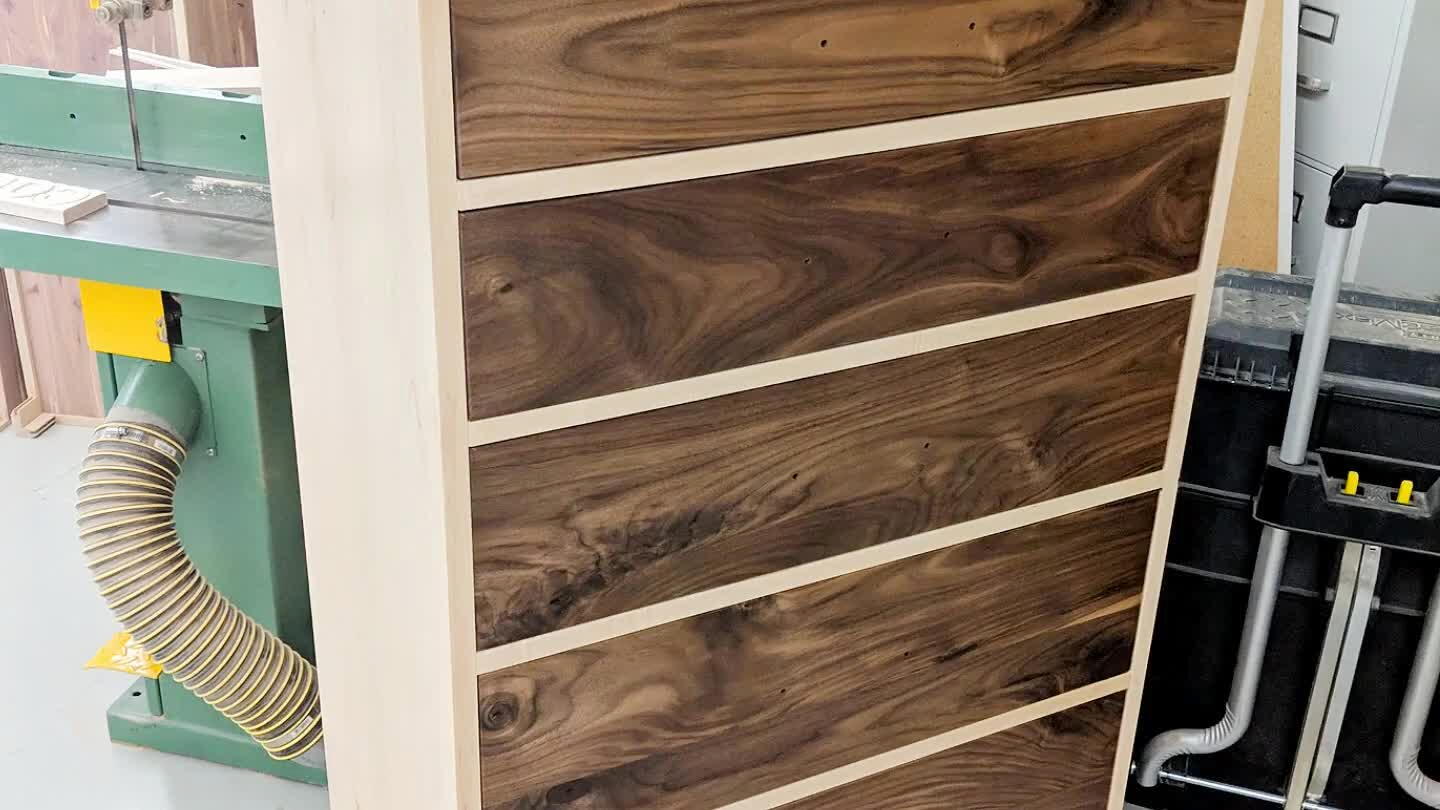

Used a very fine grit sandpaper to do a finish sanding over the entire project.

21

Play
 the walnut and made it look even better then before!

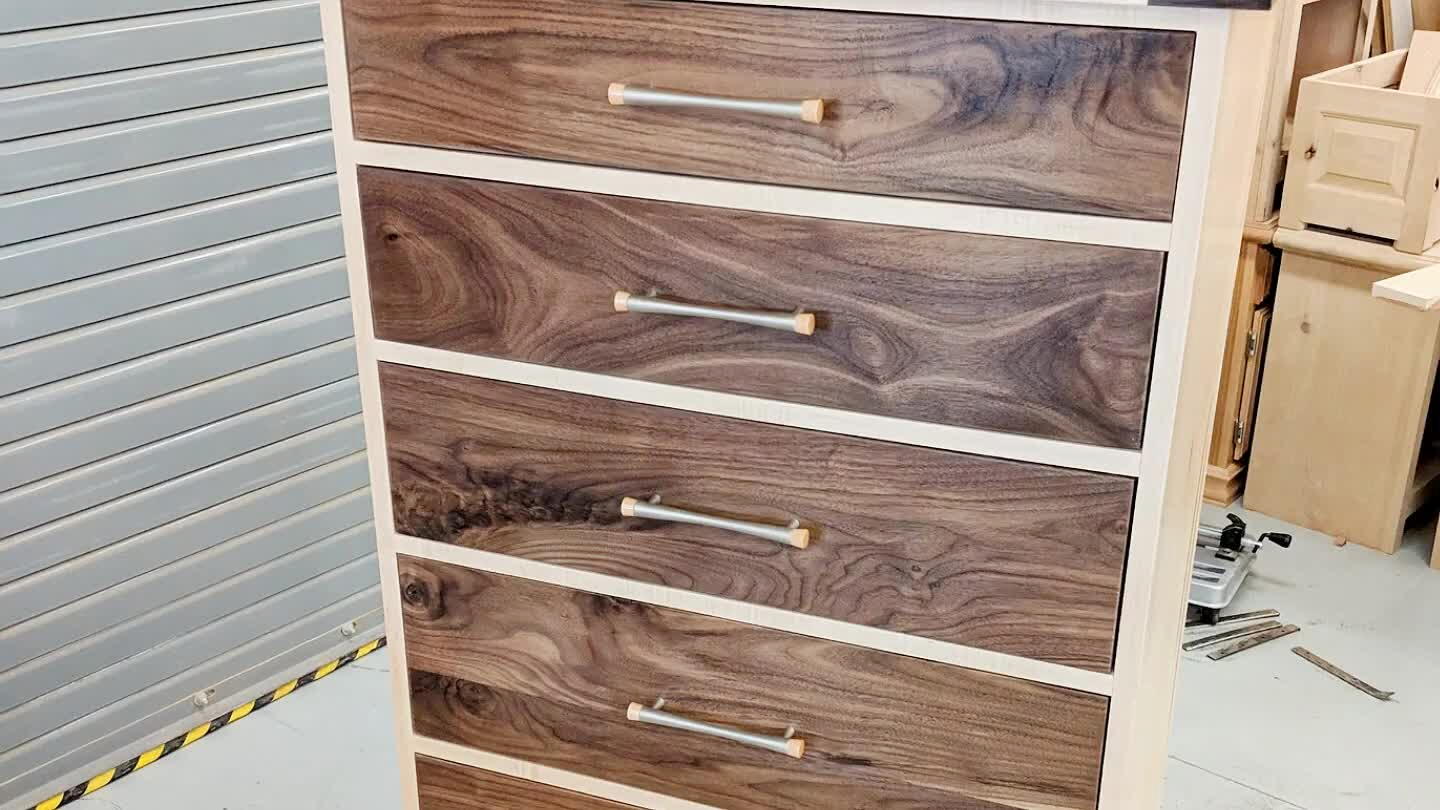

Just lacguered it 3 times with sanding between coats. It really brought out the walnut and made it look even better then before!

22

Play
ooth and a great look.

I used was to smooth out any off lacquer spots so that it would be super smooth and a great look.
